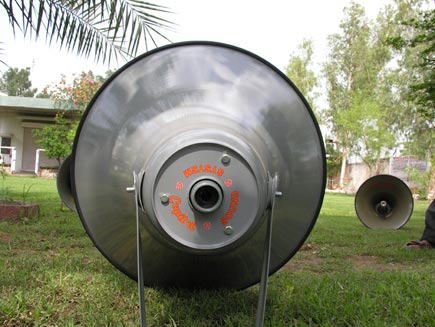

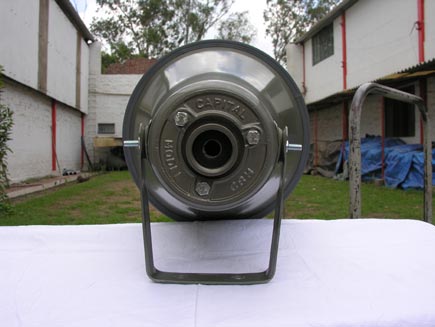

CAPITAL’S wide range of round reflex horns, which require separate driver units for optimum results are made from heavy duty Aluminium/ Mild Steel. Capital Radio Co. offers a variety of dimensions of reflex horns for specific PA applications.
The coupling is made according to international design allows mounting of practically any type of driver unit. The range of horns with smaller diameter openings have wide sound dispersion for covering large areas near horn, on the other hand, the horns with large diameter openings offer narrow directivity and long distance coverage with dynamic low frequency sound makes the horns ideal for PA purposes on a larger scale. Present available sizes are 10”, 16”, 18”, 20”, 24”, 22”, 26”, and 30” openings, whereas material of horns is aluminium/ mild steel as per requirement. In other words we make the largest range of reflex horns in India. Capital Radio Co. welcomes other odd sizes, colours & shapes depending upon quantity.
Capital radio offers a wide range in Trumpet Horns in aluminium/ mild steel, size from 20” to 24” openings. Trumpet Horns are used for long throw of sound.
- CAPITAL heavy duty aluminium/mild steel horns are ideal for many large outdoor installations.
- Rugged construction
- Fitted with a protective PVC ring on the flare.
- Designed acoustically, matches best with CAPITAL driver units for an efficient, powerful and clear sound.
| REFLEX HORNS |
| SL NO. |
SIZE |
THICKNESS OF MATERIAL USED |
CUTOFF FREQUENCY |
COLOURS |
NET WEIGHT IN Al |
MATERIAL USED |
PACKING DETAILS |
| 1 |
10" |
|
|
MET. GREY |
275 GMS |
ALUMINIUM |
|
| 2 |
16" |
1.6 MM |
200 Hz |
MET. GREY |
700 GMS |
ALUMINIUM |
20 |
| 3 |
18" |
1.5mm AND 1.8mm AL/ 22 Gauge MS |
190 Hz |
MET. GREY/BLUE |
760GMS/920 GMS |
ALUMINIUM/ MILD STEEL |
20/30 |
| 4 |
20" |
1.6mm AL/ 22 Gauge MS |
175 Hz |
GREY/ MET GREY |
1 KG |
ALUMINIUM/ MILD STEEL |
20/30 |
| 5 |
22" |
1.6 mm |
160 Hz |
GREY/ MET GREY |
1.2 KG |
ALUMINIUM |
20 |
| 6 |
26" |
1.6 mm |
140 Hz |
GREY/ MET GREY |
1.625 KG |
ALUMINIUM |
10 |
| 7 |
30" |
2mm |
125 Hz |
GREY/ MET GREY |
2.875 KG |
ALUMINIUM |
10 |
| NOTE : Packing details given are for horns only, related parts are packed in different box. Horn weights are excluding of all attachments. |
TRUMPET HORNS
Capital radio offers a wide range in trumpet horns size from 20” to 24” openings
| TRUMPET HORNS |
| SL NO. |
SIZE |
THICKNESS OF MATERIAL USED |
CUTOFF FREQUENCY |
COLOURS |
NET WEIGHT IN Al |
MATERIAL USED |
PACKING DETAILS |
UNIT COUPLING |
| 1 |
20" |
1.6mm AL/ 22 Gauge MS |
175 Hz |
ALUMINIUM/ GREY |
1 KG |
ALUMINIUM/ MILD STEEL |
20/30 |
1 3/8" X 18 TPI BRASS |
| 2 |
24" |
1.6mm AL/ 22 Gauge MS |
150 Hz |
ALUMINIUM/ GREY |
1.4 KG |
ALUMINIUM/ MILD STEEL |
15/20 |
2 3/8" X 18 TPI BRASS |
| NOTE : Packing details given are for trumpet horns only, related parts are packed in different box, please contact for details. |
|
|
